Floating Dock
brand : TPC Marine
Polyethylene Floating Docks Polyethylene floating docks represent a new generation of marine infrastructure, produced using high-density polyethylene (HDPE). With a modular design and multiple interconnection capability, these docks allow for quick installation, easy relocation, and phased expansion. The materials used in their construction are resistant to sunlight, corrosion, salt, and chemicals, ensuring a very long service life. Due to their intelligent design and lightweight structure, polyethylene docks are widely used across various industries including recreation and tourism, fisheries, marine industries, commercial ports, military bases, and even research projects. Their non-slip surface, high stability in waves, and suitable load-bearing capacity make them an ideal option for all types of aquatic environments. Custom designs and the ability to install additional accessories such as railings are among the other advantages of this advanced system.
|
Product Code |
Product Name |
(Outer) Length/ L |
(Outer) Width/ W |
(Outer) Height/ H |
|
2716001 |
Water-floating dock |
50 |
50 |
40 |
|
2718001 |
Black floating dock |
50 |
50 |
40 |

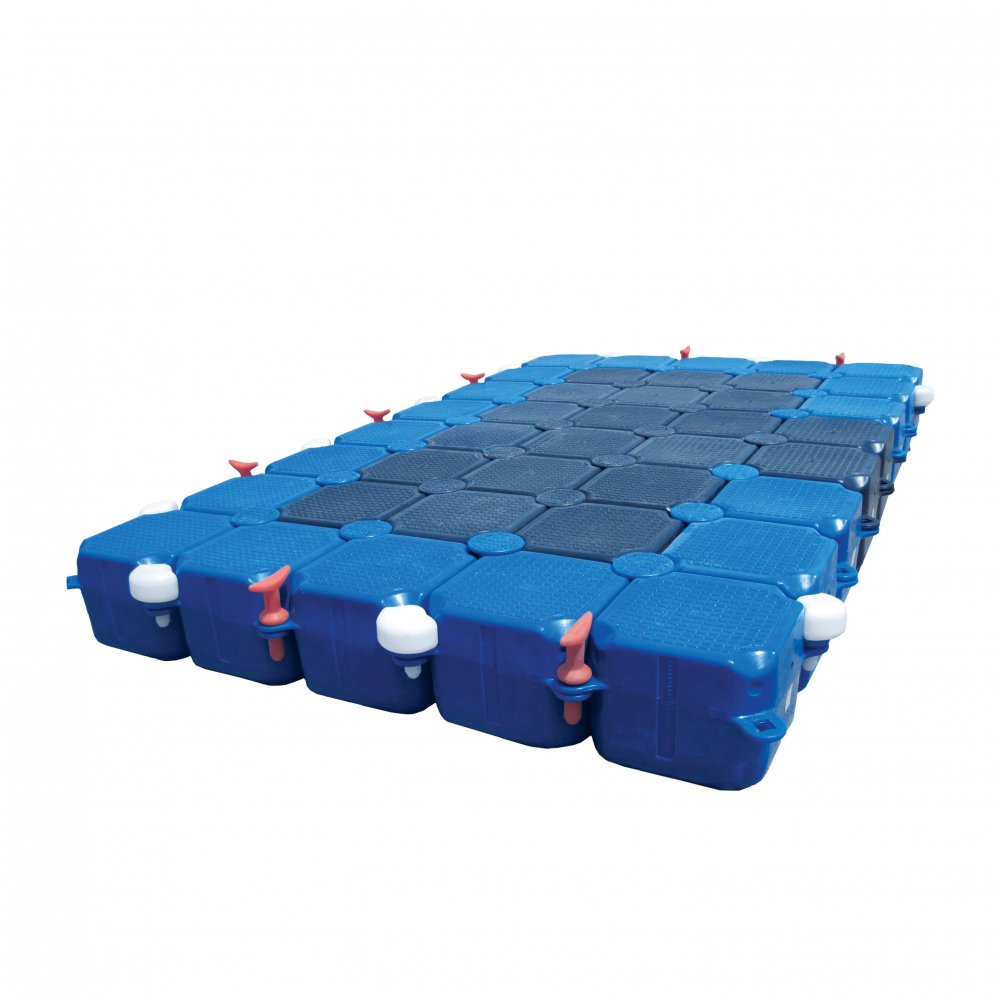

Floating Dock
Rotomolded floating docks are produced using rotational molding technology in dimensions of 50×50 cm with a height of 40 cm.
Every four pontoons joined together form a rectangular block with dimensions of 40×100×100 cm.
Each square meter of these docks can support a static load of up to 360 kg.
Each floating pontoon has four lugs for connection to other pontoons, which are joined using a part called a pin.
To increase impact resistance and enable boat mooring, bumpers and hooks are used along the sides of the dock.
The simplicity of installation and disassembly allows these docks to be used easily throughout the year.
The additives used in the polymer structure protect the docks from weather changes and particularly from the harmful ultraviolet rays of sunlight.
Applications
- Commercial and military floating docks
- Fish farming cages
- Tourist floating islands and seawater pools
- Sports stations
- Fishing docks
- Mobile floating platforms equipped with engines
Advantages of Foam Injection
- Ability to inject polystyrene or polyurethane foam
- Prevents water penetration into the floating tank
- Maintains shape under temperature variations
- Distributes pressure evenly across the dock surface
